What performance improvements do automotive aluminum die-casting parts bring?

1. What are Automotive Aluminum Die-Casting Parts?

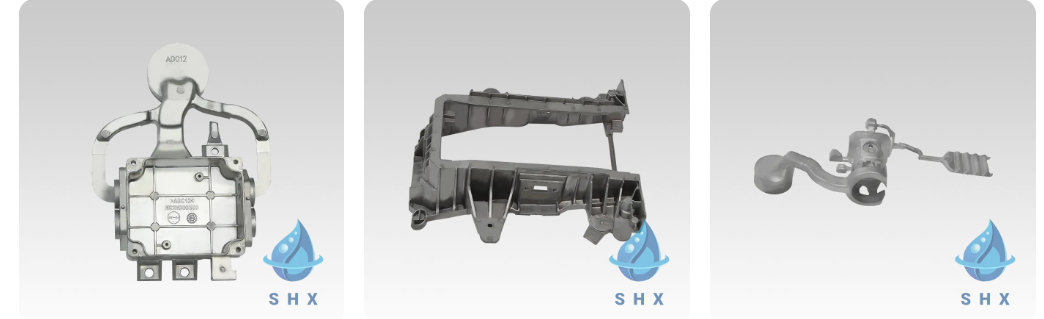

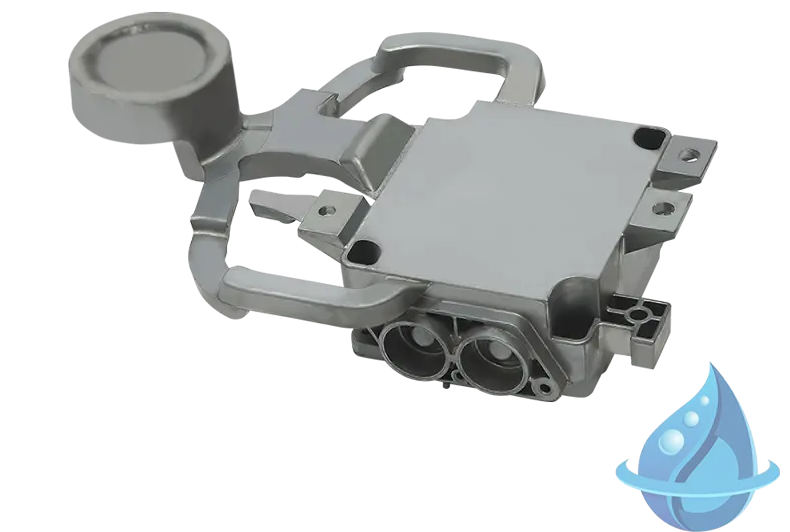

Automotive aluminum die-casting parts refer to automotive structural and functional components made primarily of aluminum alloy. These parts are formed in a single process by injecting molten metal into precision molds under high pressure and high speed. With the development of lightweighting, energy conservation, and the new energy vehicle industry, aluminum die-casting parts have become an important component of the vehicle body, chassis, powertrain, and even the three key components of electric vehicles. It not only reflects advancements in materials and processes but also affects the safety, durability, and manufacturing efficiency of automobiles.

In the automotive manufacturing field, aluminum die-casting parts play a wide role. In traditional automobiles, they are widely used, from engine blocks and transmission housings to suspensions, brackets, and body connection modules. In the era of new energy vehicles, motor housings, electronic control housings, battery pack structural frames, and integrated body die-casting parts are even more reliant on aluminum die-casting technology. Aluminum itself possesses characteristics such as light weight, high strength, and corrosion resistance. Through die casting, it achieves more ideal mechanical properties, making it an important choice for critical safety components and load-bearing parts. Meanwhile, with the rise of integrated die casting, some car body structures that were originally assembled from dozens or even hundreds of welded parts are now integrated into 1 to 3 large aluminum die castings, significantly reducing manufacturing steps and improving vehicle durability and production efficiency.

In terms of characteristics, the most obvious features of automotive aluminum die castings are high forming precision and high structural complexity. Because die casting is completed under high pressure and high speed, molten aluminum can quickly fill the intricate structure of the mold, allowing parts to be directly formed with complex curved surfaces, reinforcing ribs, holes, and other structures, reducing the need for secondary processing. Another important feature is excellent dimensional stability; parts produced in large batches from the same mold exhibit extremely high dimensional consistency, which is crucial for the automotive industry's demanding matching precision. Furthermore, aluminum die castings have excellent surface quality, making them more suitable for subsequent processing, painting, anodizing, and other surface treatments. The benefits of aluminum die castings to the automotive industry go far beyond lightweighting. Firstly, there is performance improvement. Aluminum has a high specific strength, allowing it to withstand more stress under the same weight, which is highly beneficial for the vehicle's safety and load-bearing structures. For new energy vehicles, lightweighting directly improves range; for gasoline vehicles, it means reduced fuel consumption and improved acceleration. Secondly, there are manufacturing advantages. Die casting can produce complex parts in a short cycle, suitable for mass production, helping automakers reduce costs, shorten production timelines, and improve manufacturing flexibility. This advantage is even more pronounced in integrated die casting platforms, not only increasing body strength but also reducing weld points, lowering NVH (noise, vibration, and harshness), and improving the overall vehicle quality.

In terms of reliability and durability, aluminum die castings also excel. Aluminum itself has good corrosion resistance and is not prone to rusting in everyday use environments, requiring fewer anti-corrosion processes compared to steel. The high internal density of die casting reduces the likelihood of large-area fatigue cracks, making it suitable for long-term load-bearing and high-strength structural areas. Simultaneously, the reduced number of parts and connection points generally improves the overall structural integrity and durability of the vehicle.

Despite the many advantages of automotive aluminum die castings, there are still some points to consider during later use and maintenance. First, because aluminum is slightly less hard than steel, it should be protected from strong impacts by hard objects during use to avoid localized dents or stress concentrations. Second, for aluminum components installed in certain locations or requiring sealing, such as electrical control housings and motor housings, care should be taken to keep the connection points clean to prevent debris or corrosive liquids from entering and affecting sealing performance. Furthermore, for aluminum die-castings that have undergone spraying or surface treatment, such as exposed parts of integrated die-cast body structures, the coating should be checked regularly for integrity, and repainted as needed to ensure weather resistance and surface protection. During maintenance, any disassembly or assembly of aluminum die-castings must be performed by qualified personnel, as aluminum is more sensitive to torque, installation position, and connection method; incorrect operation may lead to deformation, poor sealing, or fatigue problems.

Automotive aluminum die-castings have become a key support for the development of modern automotive technology towards lightweighting, high efficiency, and safety. Whether it's a gasoline-powered vehicle or a new energy vehicle, they are all extensively using aluminum die-casting structures to improve overall vehicle performance and production efficiency. With the widespread adoption of large-scale integrated die-casting machines and the continuous upgrading of aluminum alloy material technology, future automobiles will see more structures shifting from steel or welded parts to integrated aluminum die-casting. This will further change automotive design concepts, driving vehicles to be lighter, stronger, and more energy-efficient. For users, understanding the characteristics and maintenance methods of aluminum die-casting parts will also help better protect critical structures during vehicle use, ensuring the vehicle's lifespan and safety.

2. What performance improvements can automotive aluminum die-casting parts bring?

With the rapid development of automotive lightweighting, electrification, and integrated die-casting technology, the application scope of aluminum die-casting parts in vehicles is constantly expanding. From engine housings and transmission housings to battery pack structural components and motor housings in new energy vehicles, and then to integrated body die-casting parts, aluminum die-casting technology is gradually changing the structural design and performance foundation of automobiles. So, what performance improvements can automotive aluminum die-casting parts bring?

(1) Improving the overall vehicle lightweighting level
Aluminum alloys have the characteristics of low density, high specific strength, and flexible processing, and are about one-third lighter than traditional steel. Without reducing strength, the use of aluminum die-casting parts can effectively reduce the overall vehicle weight. For fuel vehicles, every 10% reduction in vehicle weight can reduce fuel consumption by about 6% to 8%; for new energy vehicles, the reduction in vehicle weight can directly increase the driving range, reduce the battery burden, and optimize acceleration and braking performance. Especially in the field of integrated die casting, a single large die-cast rear chassis component can replace more than 70 welded parts, reducing the vehicle's weight by 20-30 kg or more, bringing a revolutionary breakthrough to vehicle lightweighting.

(2) Improving Body Strength and Structural Rigidity
After high-pressure, high-speed molding, aluminum die castings have a dense structure and continuous force transmission path, providing excellent strength and rigidity. In the body structure, aluminum die castings can undertake important functions such as bending resistance, torsion resistance, and collision resistance. Their integrated structure reduces weld points, achieving more reliable mechanical properties. For example, after using integrated die castings in the rear structure of electric vehicles, the integrity, stability, and crumple control of the rear-end collision of the vehicle body are significantly improved, and the vehicle's resistance to deformation is also enhanced. In chassis components, aluminum die castings can effectively reduce torsional deformation, making the vehicle more stable during high-speed driving and aggressive driving.

(3) Improving the NVH Performance of the Whole Vehicle
NVH (Noise, Vibration, and Harshness) is an important indicator for measuring automotive comfort. Traditional welded structures have many parts and connection points, easily forming vibration transmission chains. Aluminum die castings, especially large-size integrated die castings, reduce the number of parts and welding points, making the vehicle body structure more continuous, which helps reduce resonance and vibration. At the same time, the inherent damping properties of aluminum alloys give them a certain ability to absorb minor vibrations, making them particularly effective for noise control in components such as the chassis and motor housing. Therefore, whether it's engine vibration isolation in gasoline vehicles or noise control of motors and inverters in electric vehicles, aluminum die castings can play a positive role, making the entire vehicle quieter and smoother.

(4) Improved Corrosion Resistance and Service Life
Aluminum has natural antioxidant properties, and when exposed to air, it quickly forms a dense oxide film, preventing further corrosion. This gives aluminum die-casting parts stronger corrosion resistance in humid, rainy, snowy, and salty environments. In contrast, traditional steel parts require multiple anti-corrosion treatments, otherwise there is a risk of rust. For electric vehicles, chassis components and battery pack protective shells have extremely high requirements for corrosion resistance, making aluminum die-casting an ideal choice. Longer service life means fewer maintenance needs and also improves the stability of the vehicle during long-term use.

(5) Improved Part Precision and Consistency
Die casting can complete the filling and solidification of molten aluminum in a very short time, and the precision of the mold directly determines the precision of the parts. Compared with forging, welding, or stamping structures, die-casting parts have better dimensional consistency, shape and position accuracy, and surface quality, which is a huge advantage for the highly standardized and repeatable production system of the automotive industry. Improved dimensional accuracy not only enhances assembly efficiency but also reduces secondary processing, saving costs for automakers. For components such as electronic controls, motors, and gearbox housings, high precision is crucial for ensuring sealing, structural stability, and durability.

(6) Enhancing Overall Vehicle Safety
Safety is the most non-negotiable aspect of automotive performance. Optimized design of aluminum die-casting parts allows for more precise crumple zones during collisions. For example, reinforcing ribs, energy crumple zones, and buffer structures commonly found in high-pressure die-casting parts rely on the precision forming capabilities of aluminum die-casting. Its combination of lightweight and high strength allows vehicles to better absorb energy and maintain the integrity of the passenger compartment during collisions. Furthermore, in new energy vehicles, using aluminum die-casting for the battery pack casing improves impact and deformation resistance, effectively protecting internal cells and reducing the risk of thermal runaway.

(7) Promoting Overall Vehicle Manufacturing Efficiency
Although this is an indirect performance improvement, its value to the industry is immense. Aluminum die-casting enables leapfrog integration of parts, significantly reducing the number of parts, weld points, and supply chain complexity. Taking integrated die casting as an example, a single molding process can complete what previously required dozens of steps, significantly shortening the production cycle and improving manufacturing efficiency. This increased efficiency allows automakers to focus more on design innovation, indirectly driving rapid iterations in vehicle performance.

Automotive aluminum die casting not only brings lightweighting but also significantly improves overall vehicle performance in multiple dimensions, including structural strength, durability, precision, safety, and NVH (noise, vibration, and harshness) performance. In the era of rapid development of new energy vehicles, aluminum die casting technology has become one of the core supports for enhancing vehicle competitiveness and will continue to drive the automotive industry towards lighter, stronger, and more efficient vehicles in the future.

3. What should be considered when selecting high-quality automotive aluminum die-casting parts?

With the continuous acceleration of automotive lightweighting and electrification, aluminum die-casting parts have become important components for key parts such as vehicle body structure, chassis system, and electric drive system. Whether it's traditional fuel vehicles or new energy vehicles, the performance requirements for aluminum die-casting parts are becoming increasingly stringent. However, the quality of aluminum die-casting products on the market varies greatly. Improper selection can not only affect the assembly accuracy of the entire vehicle but also pose risks to safety and durability. So, what key factors should be considered when purchasing or evaluating automotive aluminum die-casting parts?

(1) Reliability of Material Composition and Aluminum Alloy Grade
The quality of aluminum die-casting parts primarily stems from the material itself. Different aluminum alloy grades possess varying strengths, ductility, corrosion resistance, and process adaptability. High-quality aluminum die-casting parts typically utilize aluminum alloy systems suitable for automotive structures, such as ADC12, A380, and A356, which exhibit excellent performance in terms of strength, casting properties, and heat treatment stability. When selecting suppliers, it is crucial to ensure they possess stringent material acceptance standards, including chemical composition testing, aluminum melt purification, and pre-furnace analysis. Excessive impurities or gas content in raw materials can lead to defects such as porosity and inclusions, affecting durability and mechanical properties.

(2) Stability and Reliability of Die-Casting Process Control
The die-casting process is a core step determining product quality. High-quality aluminum die-casting parts require stable die-casting parameters, including mold temperature, pouring speed, injection speed, holding pressure, and cooling time. If the process control is inadequate, defects such as shrinkage porosity, cold shuts, flow marks, and deformation can easily occur, leading to fatigue damage over long-term use. High-quality suppliers are typically equipped with advanced die-casting equipment, such as large integrated die-casting machines, intelligent control systems, and automated production lines, while also possessing real-time monitoring and process traceability capabilities. Especially for large die-cast parts used in new energy vehicles, the requirements for process stability are even higher; it is essential to ensure that each mold and each part meets standards to maintain consistency in mass production.

(3) Professionalism in Mold Design and Processing
The quality of aluminum die-cast parts is highly dependent on the mold quality. A high-quality mold not only ensures product dimensional accuracy but also avoids problems such as stress concentration and poor filling. Therefore, when selecting suppliers or products, their mold design capabilities should be the primary focus, including gating design, venting systems, cooling channel layout, and mold steel selection. Mold processing accuracy is also crucial, as the geometric errors of the mold directly affect the parts. High-quality suppliers generally use high-precision machining centers, five-axis machine tools, wire cutting, and other equipment to ensure long mold life, high precision, and stable cycle times. (4) Does the structure of the casting meet the usage requirements? High-quality aluminum die castings must not only be "cast" but also "last long." Therefore, the rationality of the structural design is crucial. The structural design of high-quality aluminum die castings typically considers the following points:
1) Uniform wall thickness to avoid localized excessive thickness leading to shrinkage and porosity, and stress concentration in areas that are too thin;
2) Scientifically laid out reinforcing ribs to improve rigidity and seismic resistance;
3) Smooth rounded corner transitions to reduce internal stress and lower the possibility of cracking;
4) Reasonable structural weight reduction to ensure both strength and lightweighting;
5) Accurate joint positions to ensure assembly precision, such as threaded holes, mounting surfaces, and sealing positions.

For electric vehicle battery pack structures, motor housings, etc., the requirements for sealing and heat dissipation are extremely high. The structural design must consider both mechanical and thermal properties to ensure long-term reliability.

(5) Does the surface quality and machining accuracy meet the standards?
Surface defects and machining accuracy are important indicators for inspecting the quality of aluminum die castings. High-quality aluminum die castings should have a surface free of obvious porosity, cracks, weld marks, excess material, burrs, etc., and the appearance should be smooth and clean. Especially for precision structural parts, such as gearbox housings, electronic control housings, and suspension structural parts, dimensional accuracy must be ensured through post-processing. Therefore, their machining capabilities must be considered, such as machining center accuracy, fixture stability, machining flatness, and hole position accuracy. Poor machining can lead to difficulties in vehicle assembly or premature failure.

(6) Standardization of Heat Treatment and Subsequent Surface Treatment
Some automotive aluminum die-casting parts require heat treatment to improve strength and durability, such as T5 and T6 heat treatment processes. High-quality suppliers will have professional heat treatment centers to ensure precise control of parameters such as temperature and aging time. Meanwhile, automotive structural parts have high requirements for corrosion resistance, therefore often requiring processes such as spraying, anodizing, and impregnation. When selecting aluminum die-casting parts, it is essential to ensure that the supplier has a complete post-processing procedure to guarantee corrosion resistance and service life.

Selecting high-quality automotive aluminum die-casting parts requires comprehensive consideration of materials, processes, molds, structure, machining accuracy, testing systems, and supplier capabilities. High-quality aluminum die-casting parts not only improve automotive safety and performance but also determine the stability and service life of the entire vehicle. Mastering these key factors will help automakers, purchasers, or project engineers more accurately select reliable aluminum die-casting products, laying a solid foundation for vehicle performance.

4. Common Problems with Automotive Aluminum Die-Casting Parts

Automotive aluminum die-casting parts are core components for lightweight and efficient manufacturing in modern automobiles, widely used in body structural parts, chassis components, engine systems, and the three-electric systems of new energy vehicles. However, despite the maturity and widespread application of aluminum die-casting technology, various common problems still arise during production and use. These problems not only affect part quality but may also impact overall vehicle performance, safety, and durability. Therefore, a thorough understanding of common problems in automotive aluminum die-casting parts and their causes is crucial for purchasing personnel, engineers, and quality management personnel.

One of the most common problems with automotive aluminum die-casting parts is porosity. Porosity is usually caused by the failure of gas in the molten aluminum to be discharged in time or by turbulence during the filling process. While some tiny pores do not affect basic performance, if they appear in stress areas or sealing areas, they can cause insufficient strength, reduced fatigue life, or even leakage problems. For example, in structures such as motor housings, gearbox housings, and electronic control system housings, porosity can lead to sealing failure or localized fracture. Therefore, die casting plants need to strictly control processes such as smelting, venting, and mold design, while users should also pay attention to whether the parts have undergone X-ray flaw detection and airtightness testing during procurement.

Shrinkage porosity and shrinkage cavities are also common defects in die castings. Due to volume shrinkage during solidification, insufficient feeding will result in shrinkage cavities or porosity areas inside or on the surface. These defects are often large internally and difficult to detect externally, but they will severely reduce fatigue strength. Especially in integrated die casting structures for car bodies or load-bearing structural components, shrinkage porosity will affect bending and torsional performance, and may even prevent the expected crumple zone effect in a collision. Therefore, reasonable mold cooling design, gate layout, and process parameter adjustments are extremely critical.

Deformation of aluminum die castings is also a common problem. Due to the good thermal conductivity and large shrinkage rate of aluminum alloys, coupled with complex shapes and large variations in wall thickness, uneven cooling of parts can easily lead to warping, twisting, or dimensional deviations. Deformation not only affects assembly accuracy but may also cause excessive gaps, poor fastening, or uneven structural stress. In new energy vehicles, deformation can even affect the sealing structure of battery pack housings and electronic control enclosures, reducing the waterproof rating. Therefore, mold optimization, stress relief design, and subsequent tooling correction are crucial for preventing deformation.

Cold shuts and flow marks also frequently appear on the surface of die-cast parts, especially in thin-walled structures or complex cavities. Cold shuts prevent the molten aluminum from fully fusing, forming a weak bonding interface and significantly reducing the strength of that area. While flow marks are mostly cosmetic issues, severe ones can affect coating quality and induce corrosion risks. These problems require special attention in cosmetic or structural parts.

Surface bubbles and bursts on aluminum die-cast parts typically occur during spraying, baking, or high-temperature environments, caused by the thermal expansion of internal gases. This indicates the presence of unexpelled gases or inadequate surface treatment within the aluminum part. During the painting process of body structural or chassis parts, these defects not only affect aesthetics but may also weaken the coating's corrosion resistance, leading to long-term corrosion risks.

Automotive aluminum die-cast parts also face fatigue damage issues during long-term use. Although aluminum alloys possess good strength, their fatigue limit is lower than that of steel. Stress concentration, abrupt changes in wall thickness, or prolonged exposure to high loads in the structural design can accelerate fatigue crack formation. In high-vibration components such as chassis control arms, brackets, and motor mounting bases, fatigue cracks are often the primary cause of failure. To extend service life, it is necessary to optimize fillet transitions and stiffener placement during the design phase, and control internal defects during manufacturing.

Furthermore, corrosion is also common in aluminum die-castings with improper surface treatment or in harsh environments. Although aluminum alloys naturally possess an oxide film for protection, if the coating is damaged or exposed to salt spray for extended periods, corrosion pits will appear on the surface. Especially in the salt-sprayed road environments of northern winters, chassis aluminum components may exhibit localized corrosion or even pitting and perforation. Therefore, proper spraying, electrophoresis, or anodizing are indispensable protective measures.

For new energy vehicles, the airtightness of aluminum die-castings is particularly critical. Structures such as battery pack covers, sealing frames, and electronic control housings require strict sealing levels; any leakage can lead to moisture ingress, causing short circuits or performance degradation. Therefore, when selecting suppliers, airtightness testing capabilities and process stability are key considerations. Due to factors such as thermal expansion, mold wear, and process fluctuations, the hole positions, flatness, or mating dimensions of aluminum die-castings may deviate from tolerance ranges. For parts requiring high-precision fits, such as transmission system housings and electronic control mounting positions, dimensional defects can affect assembly quality or shorten part lifespan.

While automotive aluminum die-castings offer significant advantages such as lightweight design and high production efficiency, problems such as porosity, shrinkage, deformation, dimensional inaccuracies, surface defects, corrosion, and fatigue damage can still occur during production and application. Understanding these common issues and implementing targeted control measures during the design, manufacturing, and testing phases are crucial to ensuring high reliability and long lifespan for aluminum die-castings. For automakers and purchasing personnel, selecting suppliers with mature processes, comprehensive testing, and sound quality systems is essential for reducing risk and improving overall vehicle performance.

Common Problems with Automotive Aluminum Die-Casting Parts:

5. Frequently Asked Questions about Automotive Aluminum Die-Casting Parts

With the development of lightweighting and electrification in automobiles, aluminum die-casting parts are increasingly widely used in the automotive field. However, many engineers, purchasing personnel, and even end users encounter various problems during use, such as porosity, deformation, shrinkage, and dimensional deviations. To help better understand the characteristics of die-casting parts in manufacturing and use, we will answer common questions one by one below.

Q1. Why do porosity occur in aluminum die-casting parts? Will it affect use?
Porosity is one of the most common defects in die-casting parts, mainly caused by high gas content in the molten aluminum, poor venting, and unstable filling speed. Generally, small pores will not affect use, but if the pores are located in stress areas, sealing surfaces, or machined surfaces, they may lead to reduced strength or leakage problems. For example, motor housings, gearbox housings, and electronic control housings have high sealing requirements; once pores are present, they will cause oil, water, and air leaks. Solutions include degassing during melting, optimizing mold venting channels, and maintaining a stable filling speed. When selecting a supplier, ensure they possess X-ray flaw detection and airtightness testing capabilities.

Q2. What are shrinkage cavities and porosity? How do they differ from gas pores?
Shrinkage cavities and porosity are volumetric defects that occur during the solidification stage of die castings. Unlike gas pores, they arise from insufficient feeding due to volume shrinkage during metal solidification. Shrinkage cavities typically form large voids, while porosity manifests as a loose microstructure. These defects significantly affect load-bearing performance, especially in components such as brackets, suspensions, and body structures, potentially leading to premature fatigue cracking. Prevention methods include optimizing gating system location, controlling wall thickness consistency, and improving the mold cooling system. Inadequate structural design can also easily lead to shrinkage cavities, therefore, it requires careful control during the design phase.

Q3. Why are aluminum die castings prone to deformation? How can this be avoided?
Aluminum alloys have high thermal conductivity and a large shrinkage rate, while die castings typically have complex structures, easily leading to uneven cooling and residual stress within the product. Thin-walled parts, large flat surfaces, or components with significant wall thickness variations are more prone to warping or twisting. When deformation exceeds tolerances, it directly affects assembly accuracy, sealing performance, or operational reliability. Solutions include optimizing structural design (reducing wall thickness differences), controlling mold temperature uniformity, improving the cooling system, and setting appropriate ribs. For easily deformable parts, accuracy can also be ensured through post-processing tooling correction.

Q4. Are cold shuts and flow marks serious defects? Can they be used?
Cold shuts are linear defects caused by the incomplete fusion of two metal flows, affecting strength and are considered serious defects. Flow marks, on the other hand, are surface textures left by metal flow, usually affecting appearance but having little impact on structural strength. Some non-appearance structural parts are allowed to have a certain amount of flow marks, but cold shuts must never be used in load-bearing parts. If cold shuts appear on mounting surfaces or stress areas, they pose a risk of breakage. The fundamental solution is to increase the temperature of the molten aluminum, accelerate the filling speed, and optimize the flow channel design.

Q5. What causes surface popping after painting?
Many users have reported small bumps, or popping spots, appearing on aluminum die-cast parts after painting or baking. The cause is usually the presence of residual gas or moisture on the surface or inside, which expands rapidly during high-temperature baking, damaging the coating. This is more likely to occur in parts with many internal pores or those that have not been thoroughly cleaned. The solution is to strictly control the gas content during the die-casting process and to ensure thorough drying before spraying, guaranteeing the surface is free of oil and moisture.

Q6. Why are aluminum die-cast parts prone to corrosion? How can it be prevented?
Although aluminum alloys have a natural oxide protective film, pitting or white spot corrosion can still occur in salt spray environments, such as on salted roads in northern winters. Improper surface treatment or coating damage will accelerate corrosion. This is especially important for exposed aluminum parts such as chassis components and battery pack housings. Common prevention methods include spraying, electrophoresis, and anodizing. For critical electrical components in new energy vehicles, a good sealing structure and surface protection are even more crucial.

Q7. Is the strength of aluminum die-cast parts lower than that of steel parts? Can they be used in load-bearing areas?
Although aluminum has a lower specific strength than steel, high-strength load-bearing capacity can be achieved through reasonable structural design and integrated die-casting technology. For example, integrated die-cast body parts have been applied to multiple new energy vehicles, and their load-bearing capacity fully meets requirements. Aluminum is suitable for energy-absorbing, load-bearing, and connecting structures, but it is essential to ensure that the material grade, structural design, and internal quality all meet requirements. Aluminum parts containing shrinkage cavities, cracks, or excessively large porosity are unsuitable for load-bearing components.

Q8. Why are dimensional inaccuracies common? How can accuracy be ensured?
The dimensional accuracy of die-cast parts is affected by various factors, including mold wear, deformation, process fluctuations, and unstable temperature control. Excessive deviations in hole positions and flatness can affect assembly and even lead to product scrap. Methods to ensure high accuracy include using high-quality mold steel, real-time process monitoring, regular mold maintenance, and using coordinate measuring machines (CMM) for dimensional control.
